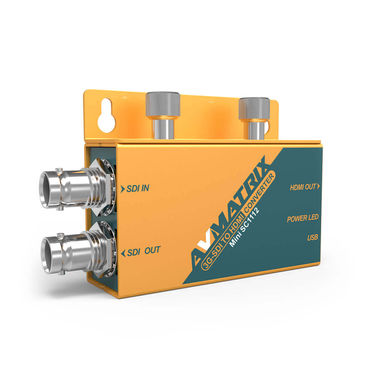

AVMATRIX 3G-SDI to HDMI Mini Converter
​

​

Input :



1 x 3G/HD/SD-SDI (auto-selecting; level A and B supported)

​

Output:

​

1 x HDMI type-A

1 x 3G/HD/SD-SDI loop out

​

SDI Format Support:



1080p at 50/59.94/60 fps

1080psf at 23.98/24/25/29.97/30 fps

1080p at 23.98/24/25/29.97/30 fps

1080i at 50/59.94/60 fps

720p at 24/25/30/50/59.94/60 fps

625i at 50 fps

525i at 59.94 fps

​​

SDI Compliance: SMPTE 292M/SMPTE 259M/SMPTE 424M

​

SDI Color Space: YUV 4:2:2

​

HDMI Format Support



1080p at 50/59.94/60 fps
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 24/25/30/59.94/60 fps
576i at 50 fps
480i at 60 fps

HDMI Color SpaceYUV 4:2:2



Power Port: 1 x micro-USB

​

Power Consumption: 1.5 W

​

Voltage Range: 3.3 - 5 V

​

Operating Temperature: -4 to 140°F (-20 to 60°C)

​

Storage Temperature: -22 to 158°F (-30 to 70°C)

​

Relative Humidity: 0 to 90% non-condensing

​

Dimensions: 2.9 x 1.6 x 0.9" (7.4 x 4.1 x 2.3 cm)



Packaging Info



Package Weight: 0.9 lb

Box Dimensions: (LxWxH)4.6 x 3.3 x 3.1"
